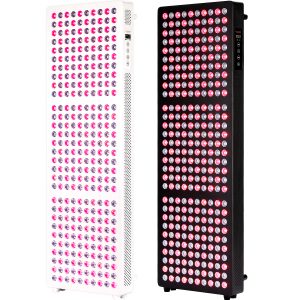

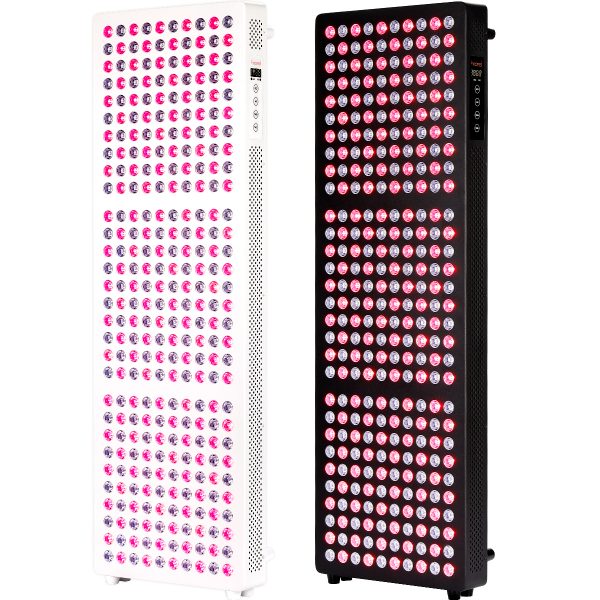

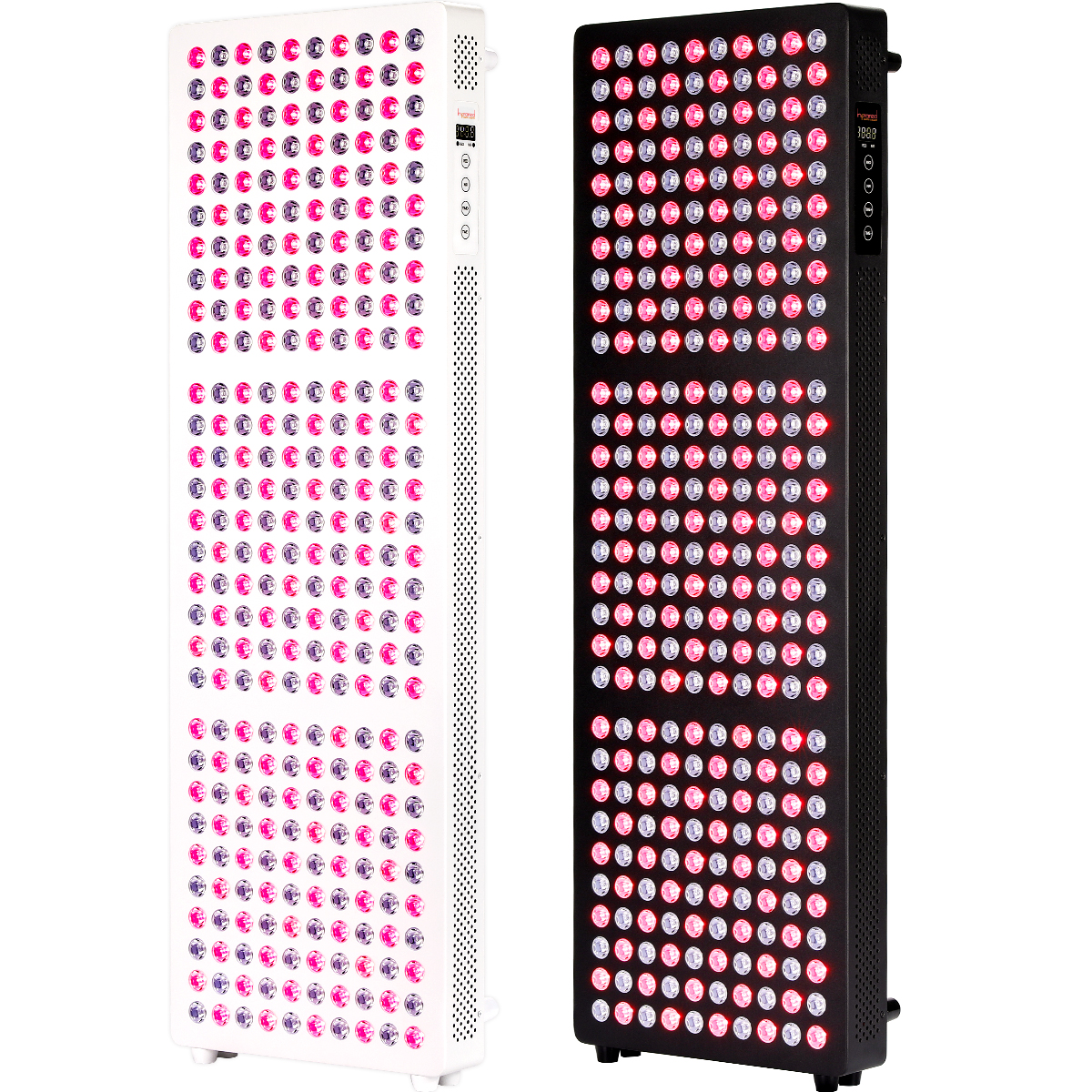

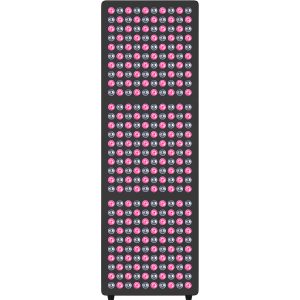

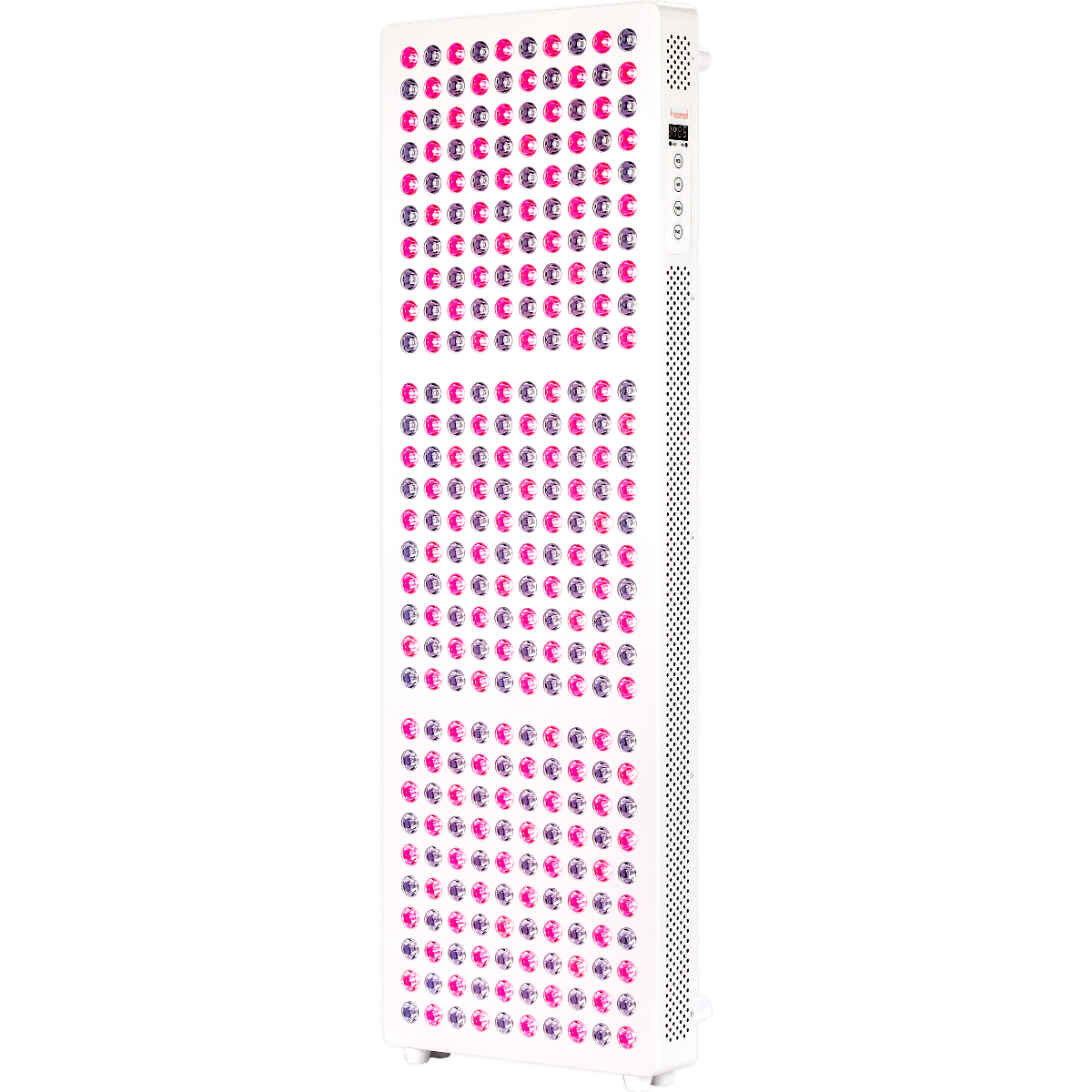

Infrared Red Light Therapy Panel 300 LEDs

Product Specifications

Shell Material	Iron
Voltage	AC 100-240V
Power Consumption	433W
Product Size	910 x 298 x 60mm (35.8 x 11.7 x 2.4in)
Net Weight	8.6kg

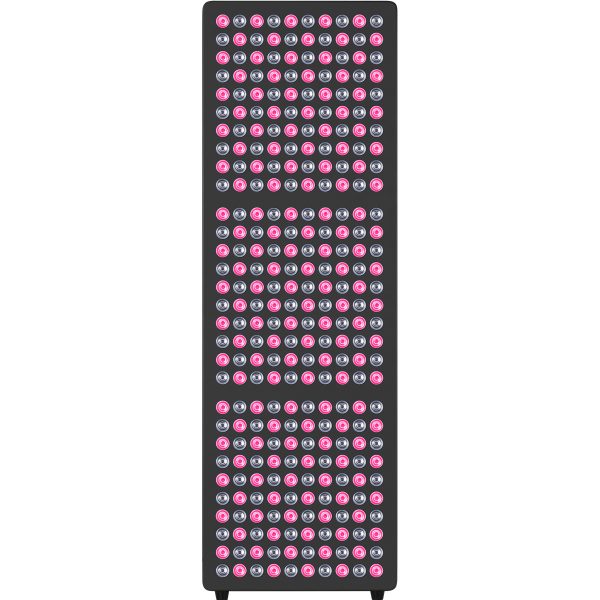

LEDs	300pcs
Lens Beam Angle	30 Degree
Wavelengths (5)	Red light: 630nm + 660nm Infrared light: 810nm + 830nm + 850nm
High Irradiance	172mW/cm² at 6 inches; 141mW/cm² at 12 inches; 125mW/cm² at 18 inches; 103mW/cm² at 24 inches.
EMF	0 μT @ 3 inches
Timer	1-30 Minutes

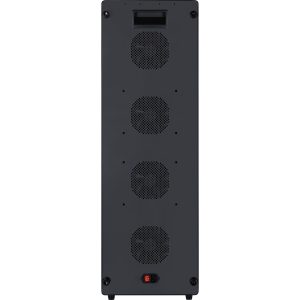

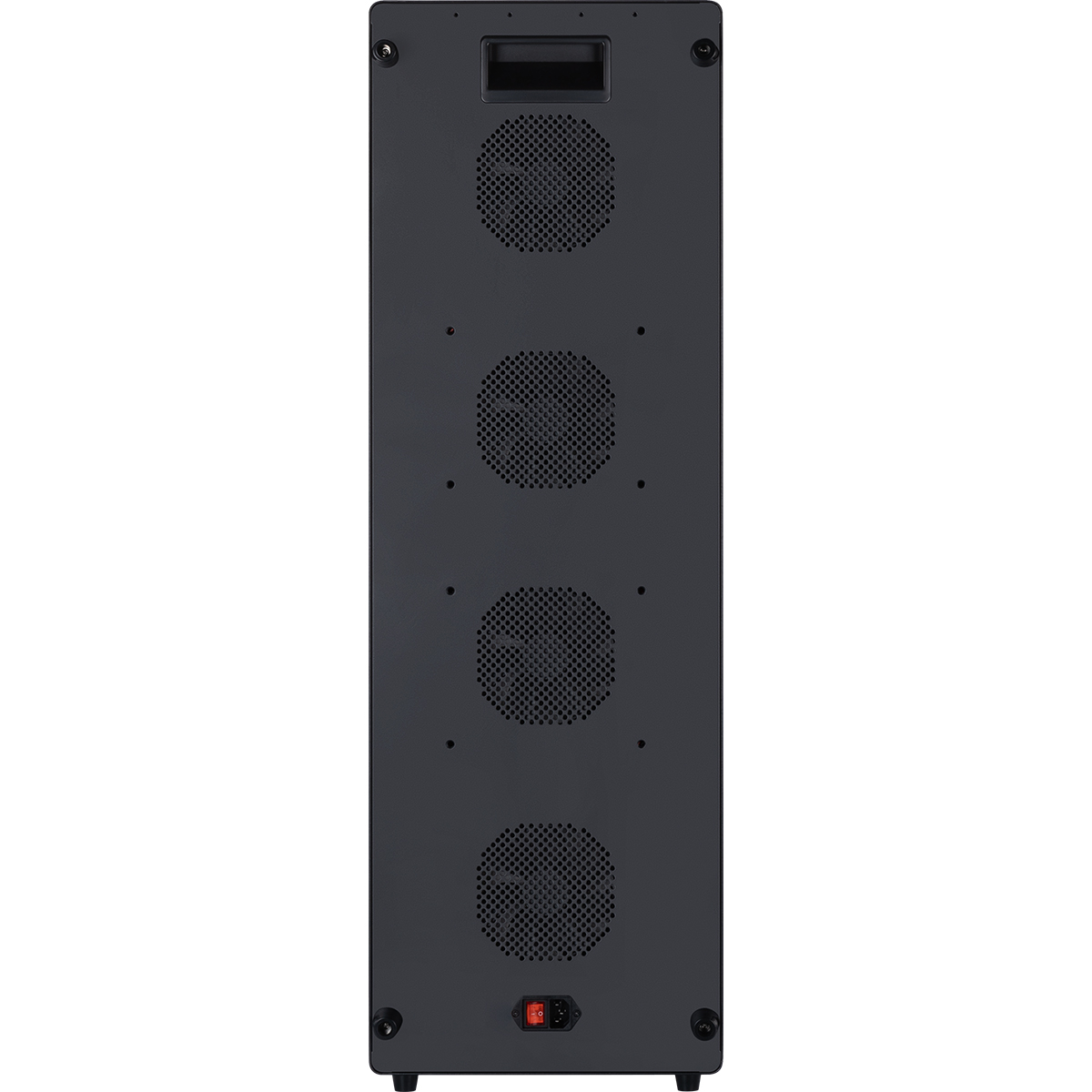

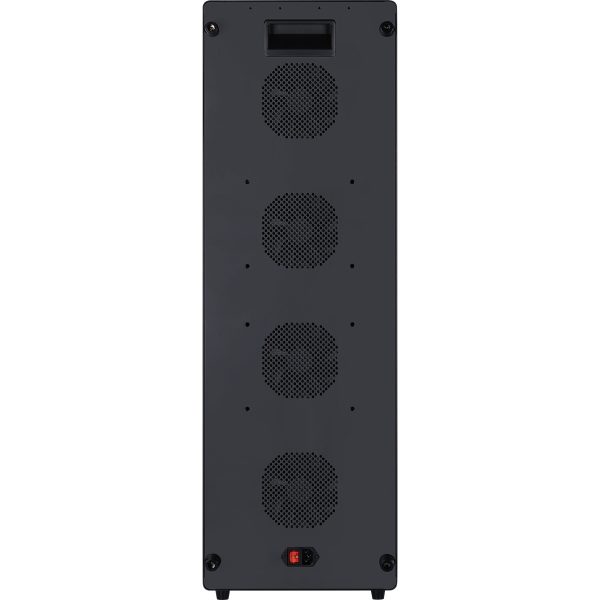

Cooling Fan Quantity	4pcs
Life Span	> 50,000 Hours
Warranty	3 Years

Featured Details

1. Patented heat-resistant and dust- and splash-proof acrylic panel was applied to protect the lamps.

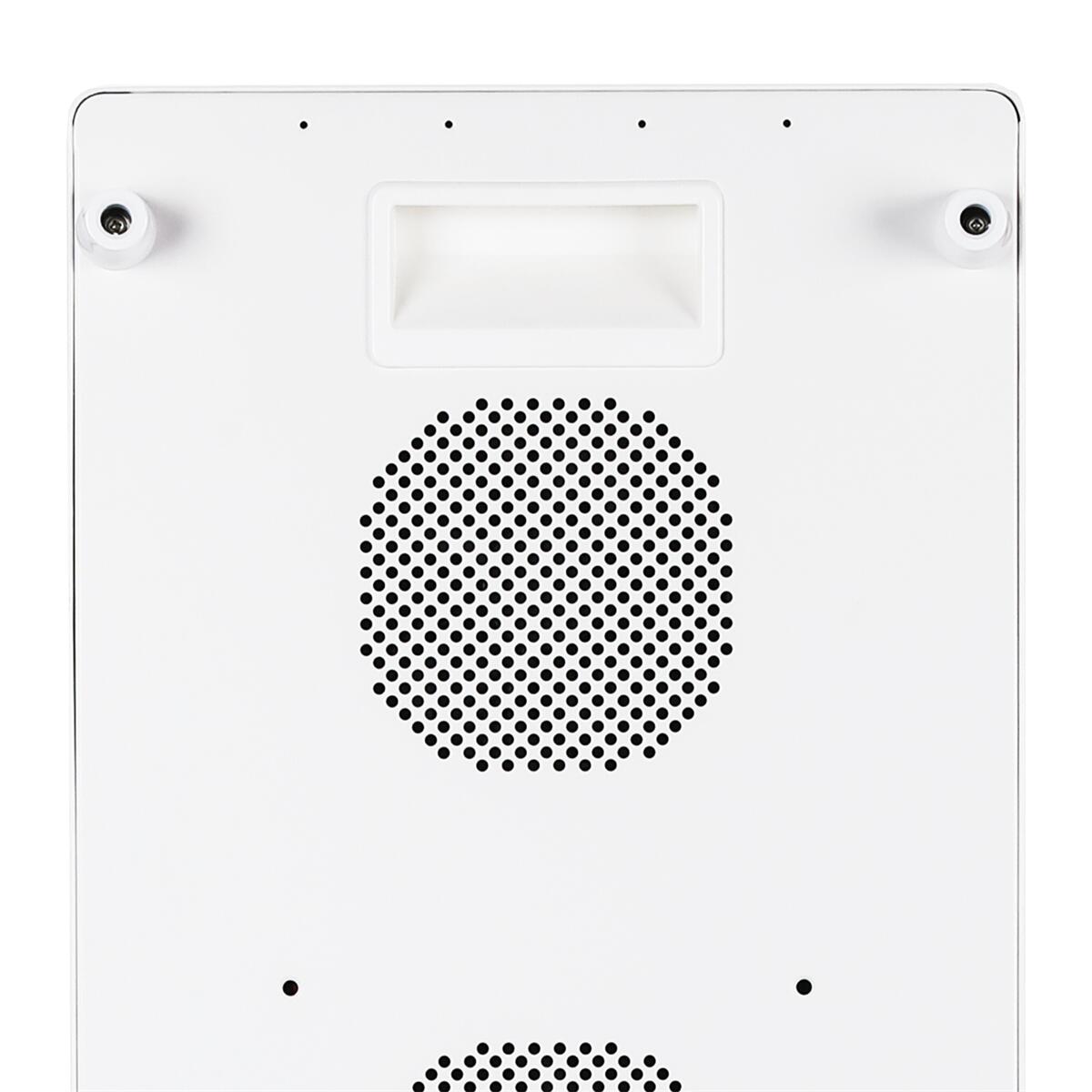

2. The whole shell is more smooth and even, preventing any hurt may be caused by sharp corners or bumpy screws.

3. Anti-skid and anti-collision rubber feet at a height of 15mm for the bottom and 31mm for the rear provide better protection.



High Irradiance

The light density can be converted into Joules by the irradiance (mW/cm2) times seconds, then divide by 1000
(eg. 50mW/cm2 * 60 seconds / 1000 = 3 Joules /cm2 per minute).

So, at 6 inches therapy distance, you will receive 10.3 Joules /cm2 per minute (172mW/cm2 * 60 seconds /1000). For a session of 20 minutes, so you will total receive 206 Joules/cm2.

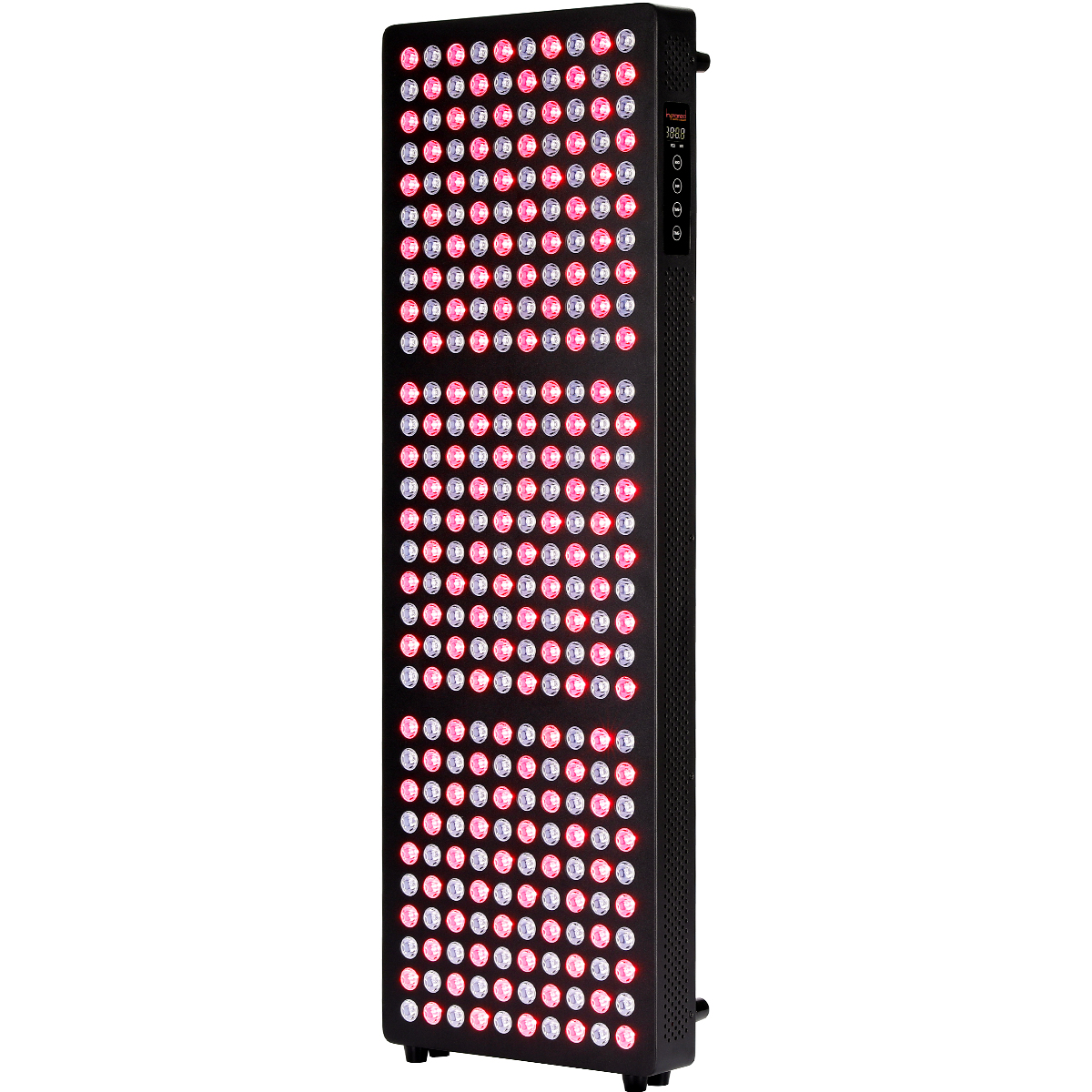

Intuitive Control Panel or Remote Controller

Photon mode and timer can be setted up via the corresponding buttons.

Merged Red and Infrared Light Therapy Effects

• Improve blood circulation
• Promote metabolism and detoxify the body
• Facilitate skin, hair and body health
• Lighten wrinkles and fine lines
• Improve saggy skin and complexion
• Reduce inflammation and repair tissues
• Allievate muscle strain, ligaments and joints pain
• Boost sleep quality and immunity
• Weight loss

Visible Red light is absorbed by the skin tissue, stimulates collagen and elastin production, lightens freckles and red bloodshot, removes fine lines and shrinks pores, majorly applied for boold circulation and skin rejunvenation.

Invisible Infrared light can penetrate deeply into the subcutaneous tissues, then generate radiant heat from inside, the blood flow speeds up and tissue metabolism promotes, enhances the cells activation, repair damaged tissues, facilitates excess fat consumption, relieves pain, etc.

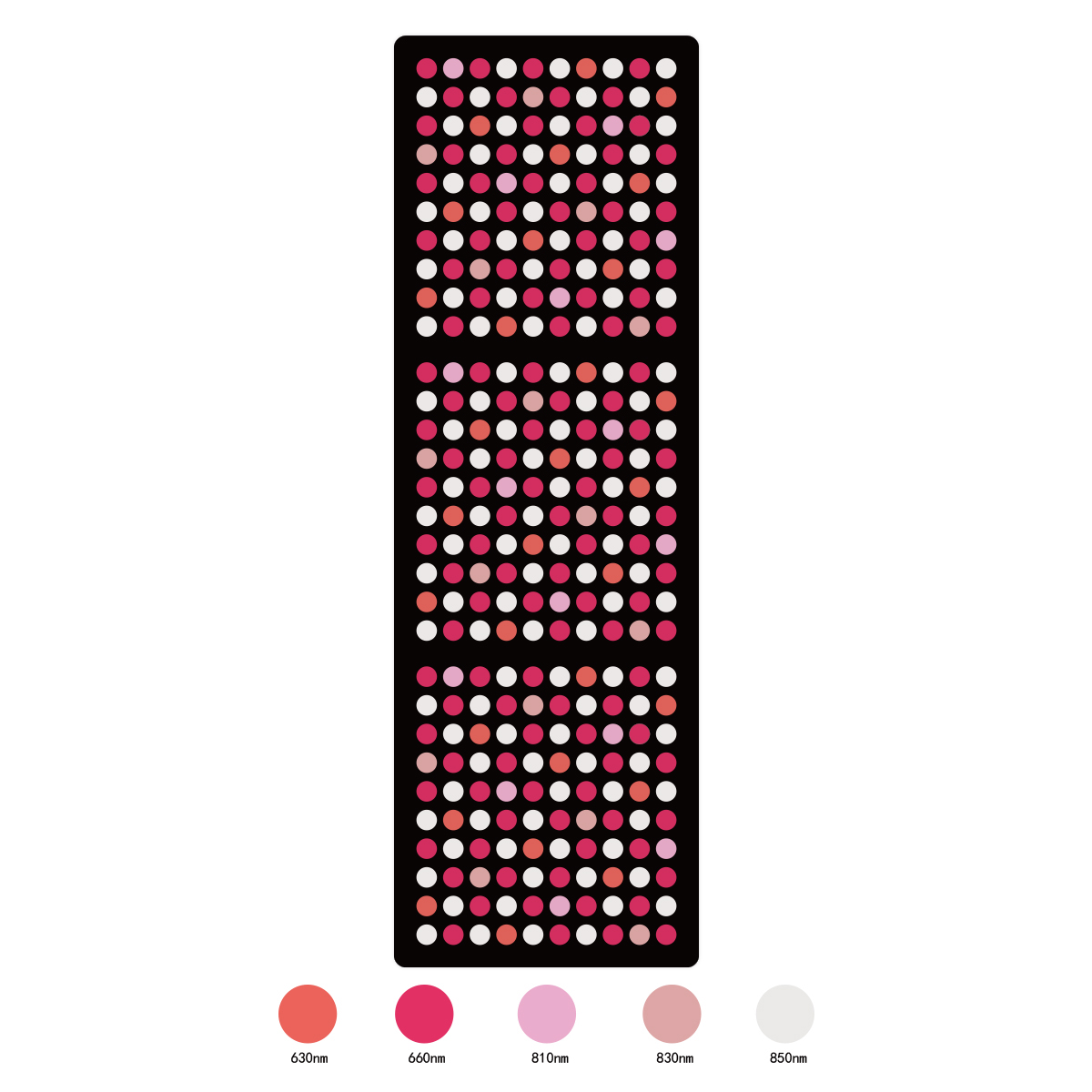

Five Wavelengths Design

3 more wavelengths than most therapy devices.

1) 630nm red light was generated by 30 LEDs.

2) 660nm red light was generated by 120 LEDs.

3) 810nm NIR was generated by 15 LEDs.

4) 830nm NIR was generated by 15 LEDs.

5) 850nm NIR was generated by 120 LEDs.

Conveniently Use with Complimentary Door Hanging Kit

You can follow the video to mount your lamp on the door or wall.

---

Manual Mobile Stand for Both Vertical and Horizontal Hanging

You can order the stand separately via the product link: Red Light Therapy Stand

Electric Mobile Stand with Adjustable Heights and Angles

You can order the stand separately via the product link Electric Mobile Stand for Red Light Panel

Packing List

1 x Light Therapy Device
1 x Remote Controller
1 x Power Cord (Follow your country standard)
1 x Door Hanging Kit
1 x Goggles

Use Suggestion

Session：10-20 minutes for the same area in a session. It is better to start with a shorter session if you never use light therapy.

Frequency: 1-2 times a day for the same area treatment. Keep minimum 6 hours interval for the 2nd treatment for the same area.

Distance: Expose your skin and keep a distance at 6-24 inches from the device for best results.

Protect your eyes: Please wear goggles when enjoying the light therapy.

Tips: Drink some water before and during use.

NOT USE UNDER THESE CONDITIONS

Children under the age of 13, pregnancy and epilepsy, photo-allergy, and photosensitizing medications like lithium, melatonin, phenothiazine antipsychotics, and certain antibiotics.

People with a history of skin cancer, insensitive to heat, and systemic lupus erythematosus should also avoid this kind of treatment.

Besides, if you are currently taking steroids or cortisone injections, you should not receive light therapy.

Precautions

1. One treatment session for the same area should not exceed 30 minutes.
2. Turn off all power after finishing treatment, pull plugs off when not in use.
3. Do not use the device in the circumstances of hot, humid, dusty or have lampblack in the environment.
4. Keep your device away from sources of liquid, such as drinks, washbasins, bathtubs, shower stalls, and so on.
5. Keep your device in a cool, dry, well-ventilated location without corrosive gas.
6. Prevent impact or violent vibration, move it gently.
7. Avoiding alcohol or corrosive solvent to clean all parts of the device.

Maintenance

Turn off the power of your device first, and then unplug the power cord. Then use a light damp, soft, lint-free cloth to clean exterior. Do not spray liquid directly.

3-Year Warranty

All panels of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of three years from the date of shipment from the factory. IRL will be responsible for the faults of the products caused by the normal using during the warranty period, repair or replace the corresponding component found to be defective at no charge to the purchaser.

IRL shall not be liable for any faults or damage caused by misuse, accidental or intentional damage, force majeure, or the product has been modified.
