|Main Materials||Fabric, F-PCB, LEDs|
|Rated Voltage / Power||100-240V, 84W|

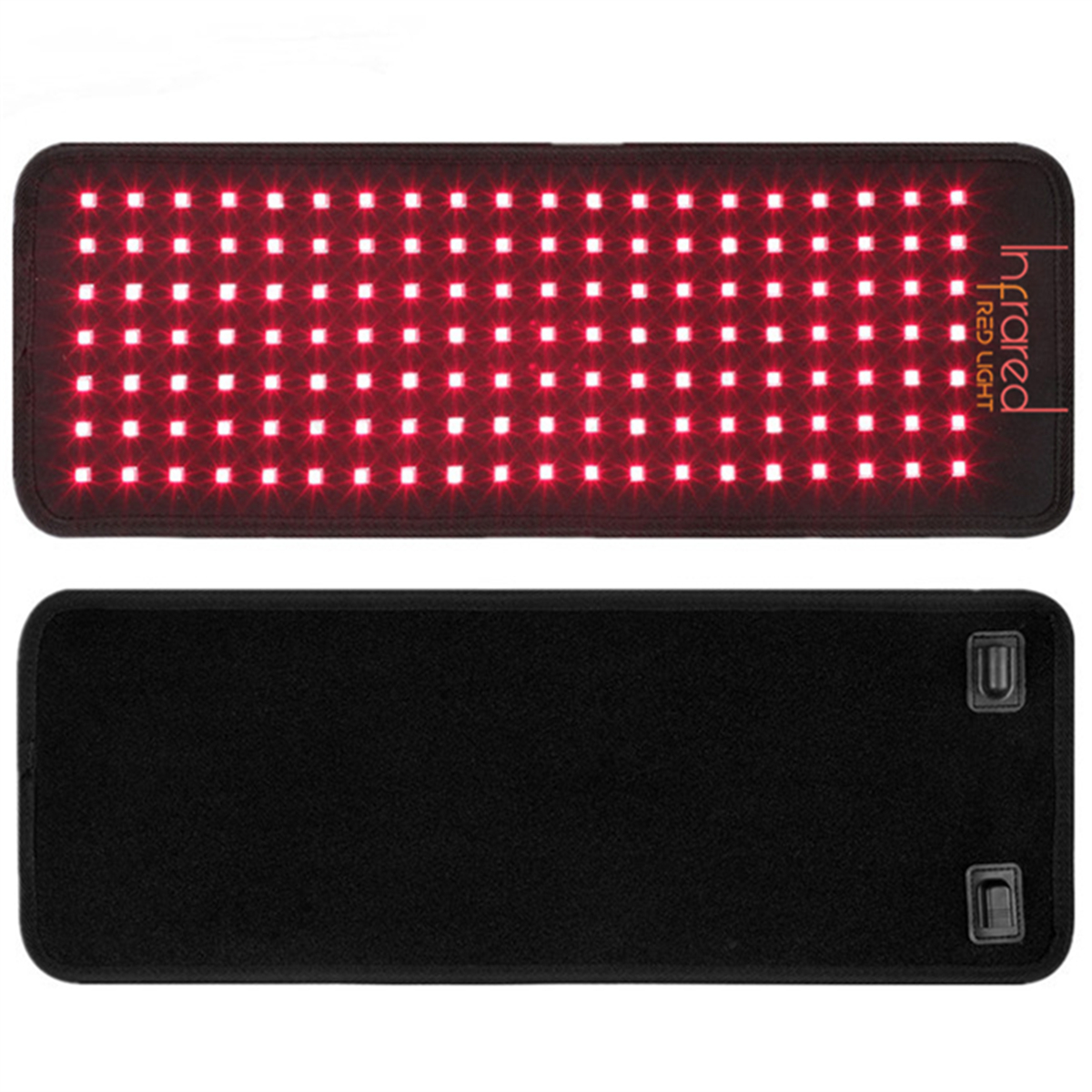

|Product Size||460 x 170mm (18 x 6.7in)|
|LED Quantity||140pcs tri-chip * 0.4W|
|Wavelengths||660nm : 850nm = 1 : 2|
|Light Energy Density||0 inch > 120mW/cm²|
|EMF||0 μT @ 0 inches|
|Photon Mode||Red / NIR / Red + NIR|
|Photon Intensity||3 Levels|
|EMS||6 Modes, 9 Levels|
|Life Span||> 50,000 Hours|

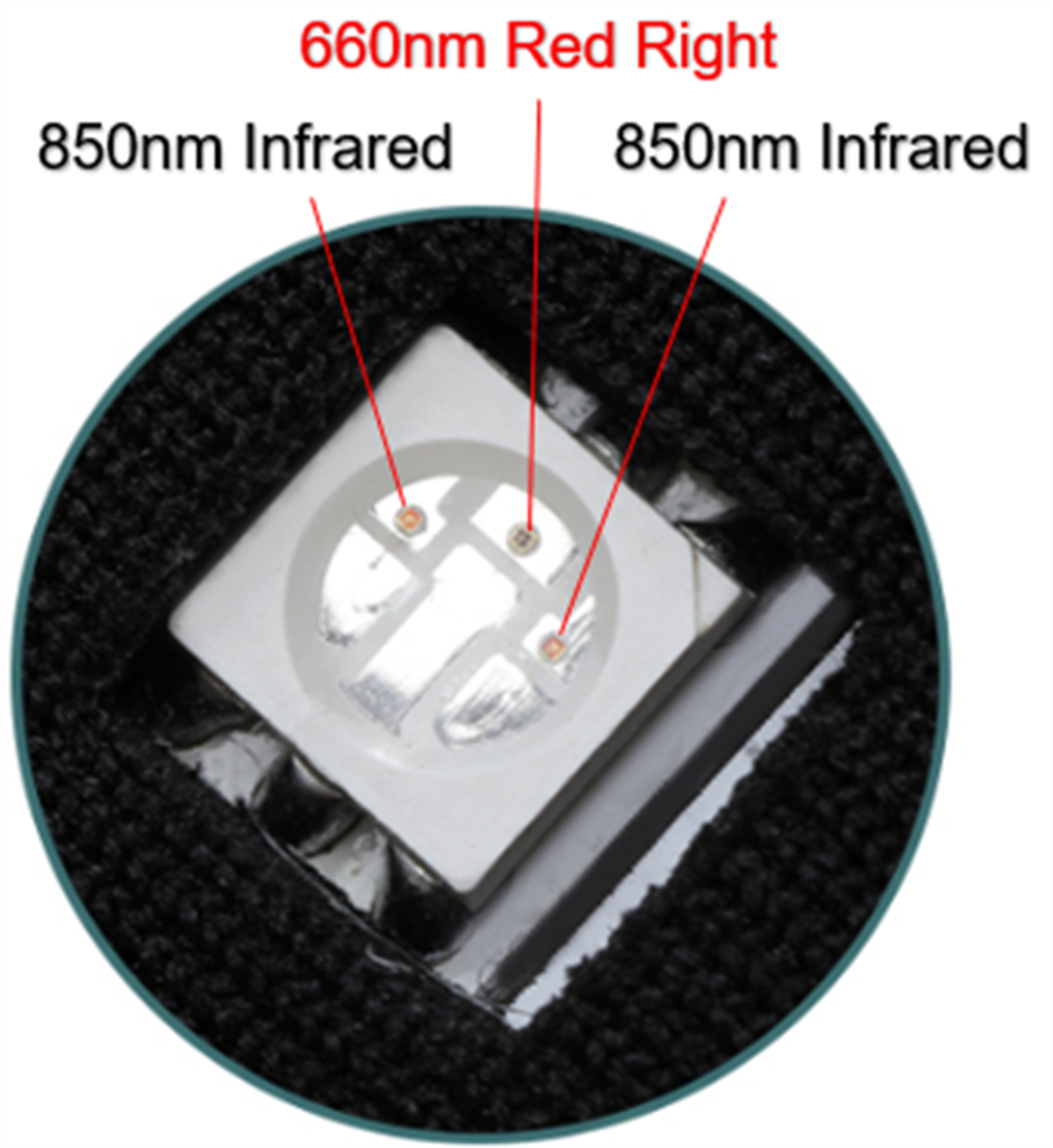

Tri-chips LEDs, total 420pcs chips for 660nm:850nm at 1：2.
It provides an ideal wavelength, increases tissue temperature, improves cell vitality and regeneration, promotes blood circulation, enhances metabolism and alleviates tissues pain, etc.

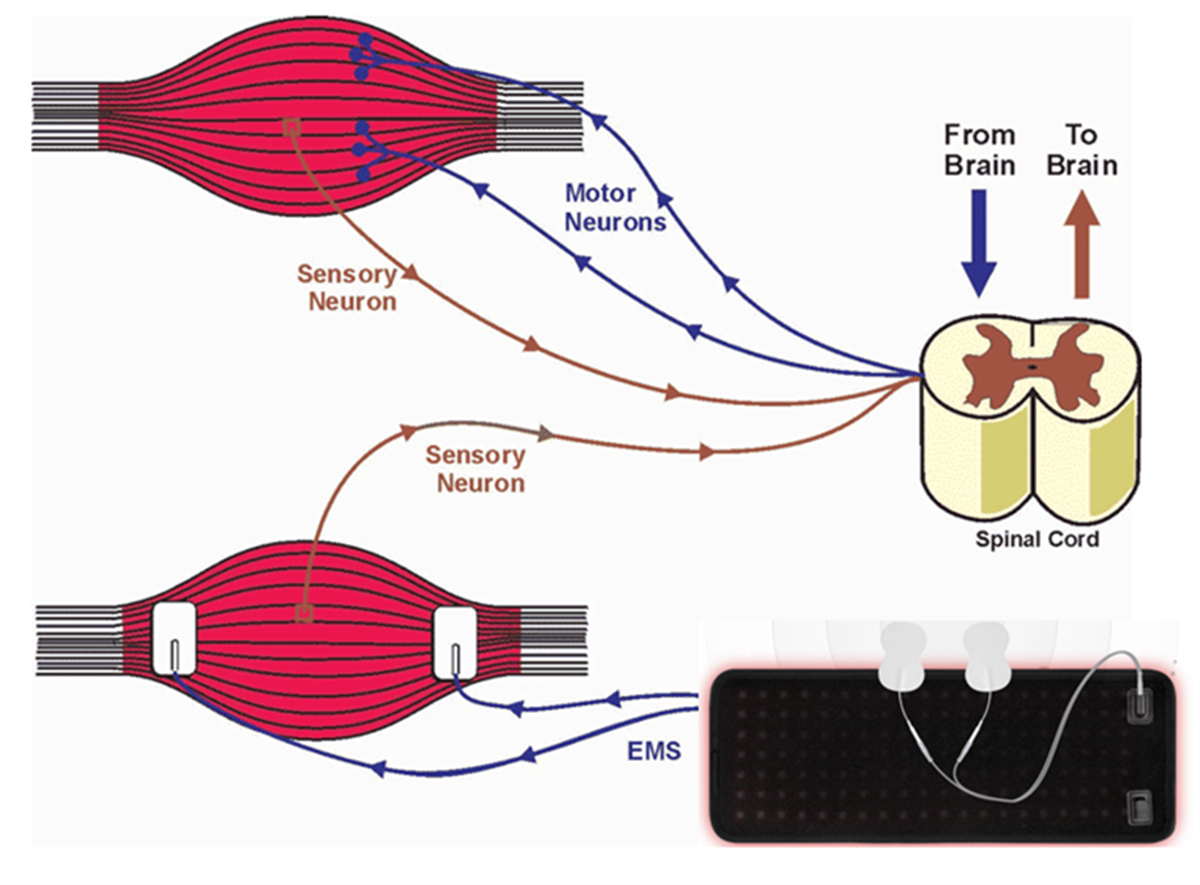

Electric muscle stimulation (EMS) is a type of electrotherapy stimulates a muscle contraction using electrical impulses in order strengthen weak muscles, reduce swelling, relieve pain and help heal wounds. Doctors use EMS to help relieve musculoskeletal injuries or ailments.

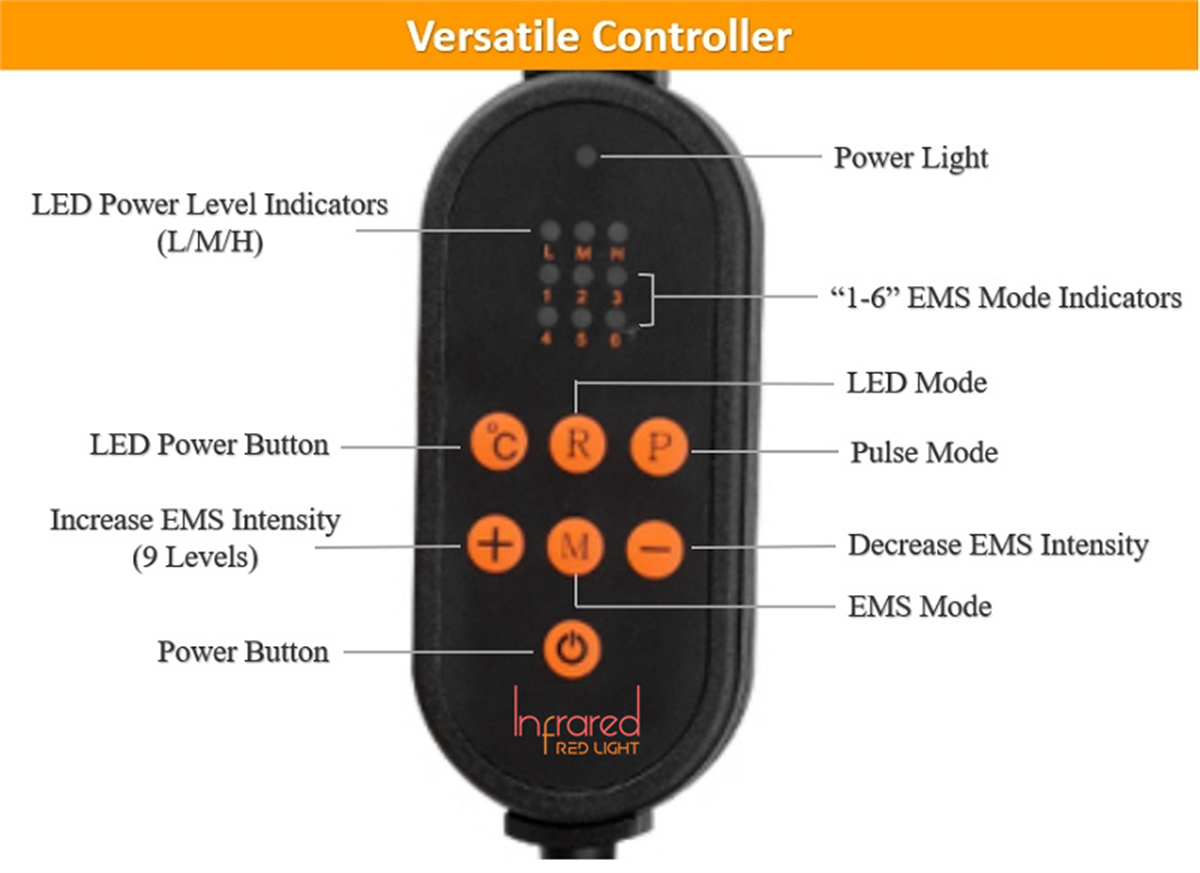

Press “M” key of the controller, enter into EMS mode.
Continously press “M” key, then 1/2/3/4/5/6 indicator will be lit accordingly, it means different mode.
The intensity can be adjusted by “+” and “-” keys.
Six Therapy Mode
01 Mixed Mode(660nm+850nm): Press the “R” key ONCE of the controller, both red and infrared light will be on.
02 Mixed Pulse Mode(660nm+850nm+Pulse): Press the “R” key ONCE of the controller, then press the “P” key to start this pulse mode.
03 Infrared Light Mode(850nm): Press the “R” key TWICE of the controller, only infrared light will be on.
04 Infrared Light Pulse Mode(850nm+Pulse): Press the “R” key TWICE of the controller, then press the “P” key to start this pulse mode.
05 Red Light Mode(660nm): Press the “R” key 3 TIMES of the controller, only red light will be on.
06 Red Light Pulse Mode(660nm+Pulse): Press the “R” key 3 TIMES of the controller, then press the “P” key to start this pulse mode.
Press “°C” key to select therapy intensity, 3 levels L/M/H. L*39°C, M*43°C, H*47°C (+/- 2°C)
