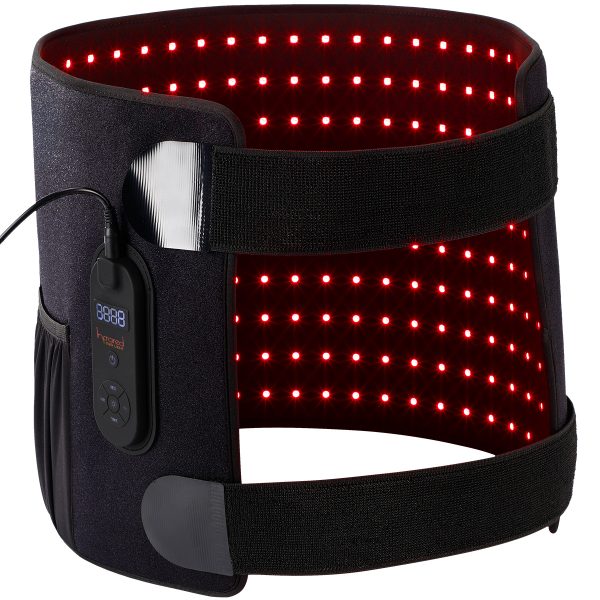

Large LED Light Therapy Belt

Product Specifications

Main Materials	Fabric, F-PCB, LEDs
Rated Voltage / Power	100-240V, 144W
Actual Power	50.5W
Product Size	800 x 300mm (31.4 x 11.8in)
Net Weight	1.5kg
LED Quantity	360pcs dual chip * 0.4W
Wavelengths	660nm : 850nm = 1 : 1
Light Energy Density	0 inch > 100mW/cm²
EMF	0 μT
Photon Mode	Red / NIR / Red + NIR
Timer	Default 20 minutes (5-30 minutes for option)
Dimmer (5 Levels)	1 – 5 (20% / 40% / 60% / 80% / 100%)
Pulse Frequency (7 Levels)	4 / 10 / 40 / 73 / 146 / 293 / 587Hz
Life Span	> 50,000 Hours
Warranty	1 Year

Optimal Combination of Red Lights and Near Infrared Rays (NIR)

Each one light-emitting diode has 2 chips for light emiting, one for 660nm visible red light, another for 850nm invisible infrared light. The large belt has 720 chips for a powerful light therapy.

The red lights with 660nm wavelength stimulates mitochondria, sometimes called the “power generators” of your cells. Chemical energy produced by the mitochondria is stored in a small molecule called adenosine triphosphate (ATP). With enough ATP, the cells can function more efficiently, rejuvenate themselves, and repair damage.

Infrared rays (IR) with 850nm wavelength have a poweful penerating ability, so, can be absorbed by the deep body tissues, then generate radiant heat from inside faster, enhance the cells activation, promote adipose tissue metabolism, accelerate fattiness combustion and decomposition, facilitate excess fat consumption, and then get effective result of weight loss.

Design Features

1. Medical-grade LEDs, 360pcs. Dual chips structure, so total 720pcs light sources.

2. High quality fabric, environmental and safe to our health.

3. The light therapy belt is larger than most belts for providing a more efficient therapy.

4. Two controllers.

One is on the belt, with a display for easy checking to your setting value.

Another is a remote, which can control the belt at a further distance of 15 meters, even up to 20 meters.

5. Advanced control system.

5-30 minutes timer, 5 gears dimmer function, 7 pulse frequencies and 3 light modes for your option.

Easy Operation

1. Power Switch Button：For turn on and turn off. Turn on the pad, it automatically goes into “RED+NIR” mode.

2. “RED” Button: Press it for only “RED” mode. You will only receive the red lights, bright and no heat.

3. “NIR” Button: Press it for only “NIR” mode. You will only receive the NIR lights, and feel the heat, they are invisible to our naked eyes.

4. “Time” Button: Default 20-minute, pressing it to adjust the time, 25 -> 30 -> 0 -> 5 -> 10 -> 15 ->20 minutes, then goes into another cycle.

5. “Hz” : 7 pulse frequencies for your option, 4 / 10 / 40 / 73 / 146 / 293 / 587Hz.

6. “Dimmer” Button (in the middle): For brightness and light energy adjustment, 1=20%, 2=40%, 3=60%, 4=80%, 5=100% (full power), total 5 levels can be chosen.

Usage Suggestions and Maintenance

1. 20 minutes a session, 1-2 times a day for the same area at an interval of 6 hours, and last for a minimum of 8 weeks.

2. Drink some water before and during use.

3. Uncover your skin and pad for better light therapy results. If you need to wear some clothes, then a thin and silk one is better than a cotton or thicker one.

4. After use, unplug and store the belt in a cool and dry area.

5. All LEDs are waterproof designs, and it is safe to use a light damp cloth to gently wipe the surface to clean.

Package Inlcudes

1x Therapy Belt
1x Drawer Type Box
2x High Elastic Rubber Band
1x Remote Controller
1x Power Cord (Follow your country standard)
1x Adaptor

Warning

1. NOT USE UNDER THESE CONDITIONS: Children under the age of 13, pregnancy and epilepsy, photo-allergy, and photosensitizing medications like lithium, melatonin, phenothiazine antipsychotics, and certain antibiotics. People with a history of skin cancer and systemic lupus erythematosus should also avoid this kind of treatment. Besides, if you are currently taking steroids or cortisone injections, you should not receive light therapy.

2. One treatment session for the same area should not exceed 30 minutes.

3. The light therapy product is not waterproof design, keep away from water and damp area.

4. Do not fold and squeeze the pad, please loose roll it to prevent the built-in flexible PCB board from fracturing, unfold and flat storage will be the best way.

1-Year Warranty

All pads of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of one year from the date of shipment from the factory. IRL will be responsible for the faults of the products caused by the normal using during the warranty period, repair or replace at no charge to the purchaser.

IRL shall not be liable for any faults or damage caused by misuse, accidental or intentional damage, force majeure, or the product has been modified.

Operations Manual
