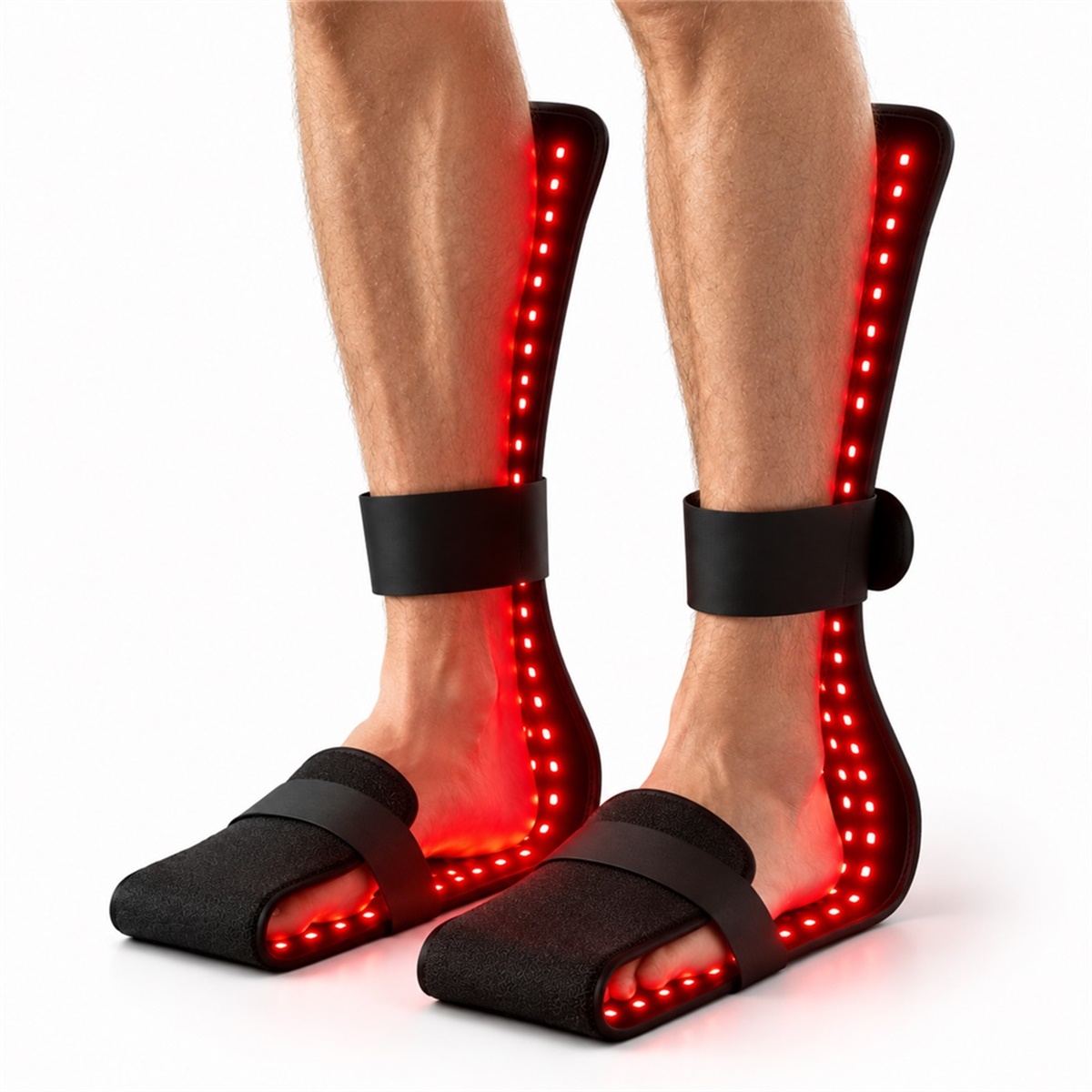

4 In 1 LED Red Light Therapy for Foot Neuropathy 2pcs

2pcs Come Together for Both Feet / Most Efficient and Cost-effective

For 1 unit purchase, please access For one foot

The Upgraded and Unique Design

1.The design features a 4 in 1 LED configuration, an upgrade from the previous 3 in 1 LED diode.

The internal configuration of each LED diode includes a quad-chip setup comprising one unit at 630nm, another at 660nm, an additional unit at 810nm, and finally one more unit at 880nm.

2. The design has been extended to enhance functionality.

The upgraded boot now measures 880mm, which is longer than the original measurement of 762mm, thereby providing increased coverage for the leg.

3. No empty space, fully covered with the LED technology.

Four Wavelengths Combination for Optimal Effects

The red lights of 630nm & 660nm, have beneficial effects on cellular function. They will be absorbed by mitochondria, which are responsible for producing energy in cells, they can enhance their activity and increase energy production. This boost in energy production has a positive impact on various biological processes. It stimulates cell regeneration, promotes skin collagen production, delays the development of fatigue in the muscles, enhances skeletal muscle performance, and induces an anti-inflammatory effect.

The near-infrared lights of 810nm & 880nm, have longer wavelengths that enable them to penetrate deeper into tissues, generate heats inside. This increased cellular activity leads to improved blood circulation within the targeted area. Enhanced blood flow facilitates the delivery of essential nutrients and oxygen, while efficiently eliminating metabolic waste from tissues. Additionally, it aids in alleviating inflammation and mitigating pain, expedites wound healing, helps the tissue to granulate more rapidly.

The combination of the four wavelengths effectively penetrates different layers of tissues, leading to enhanced blood circulation, reduced inflammation, alleviation of neuropathic pain, relief from joint or muscle discomfort, and modulation of the immune system in the treated areas.

Product Specifications

Main Materials	Fabric, F-PCB, LEDs
Rated Voltage	AC 100-240V, 50 / 60HZ; DC 12V
Power Consumption	35W
Product Size	880 x 127mm (34.6 x 5in)
Net Weight	0.2kg
LED Quantity	180pcs Quad-chip (720pcs Chips)
Wavelengths	630nm : 660nm : 810nm : 880nm = 1 : 1 : 1 : 1
Light Energy Density	150mW/cm² @ 0 inch
EMF	0 μT
Photon Mode	Red / NIR / Red + NIR
Timer	30 Minutes
Pulse Function	10HZ
EMS Function	6 Mode, 20 Levels.
Brightness	3 Levels (Low / Middle / High)
Lifespan	Over 50,000 Hours

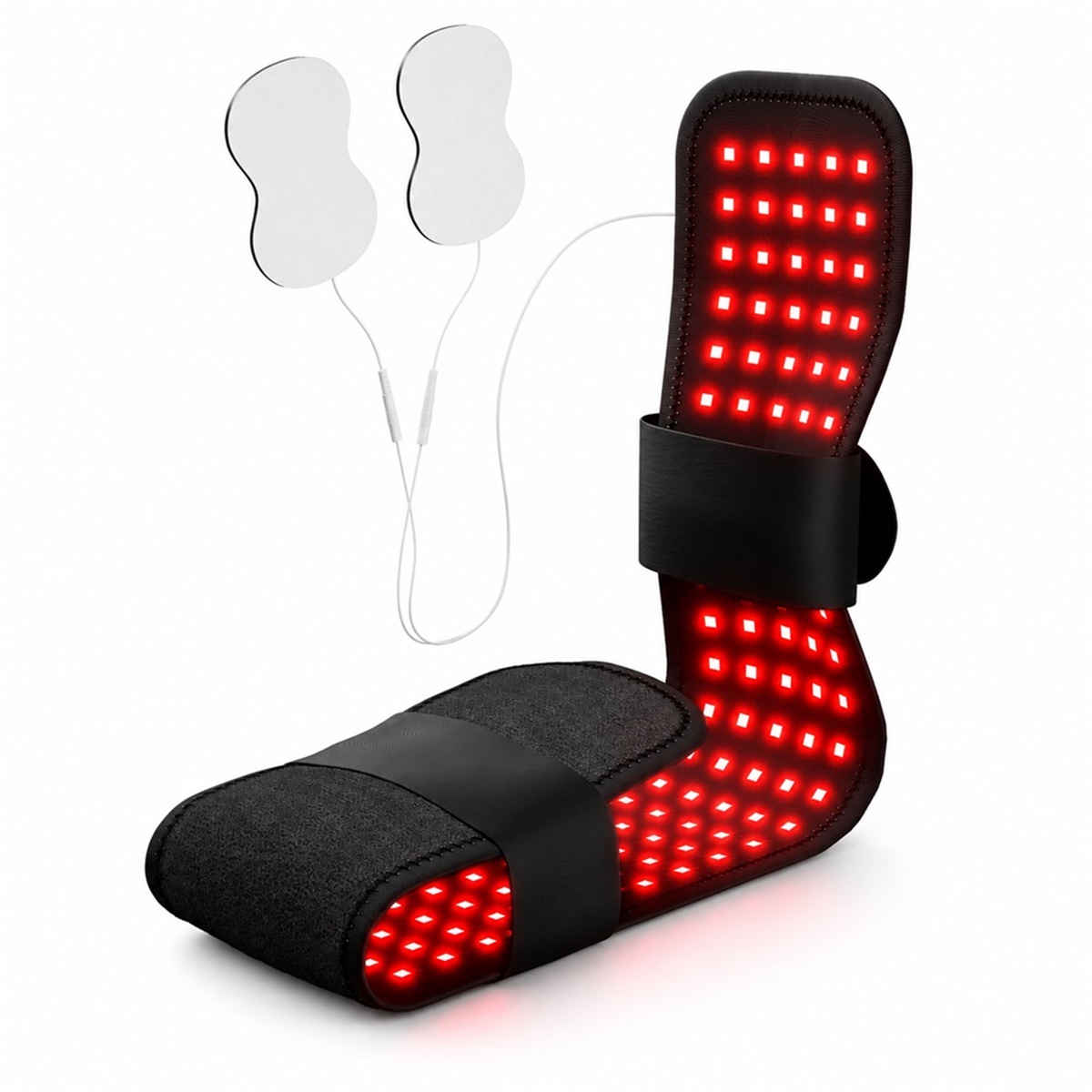

Extra Electric Muscle Stimulation (EMS) Function

The EMS technique is a form of electrotherapy that utilizes electrical impulses to induce muscle contractions, thereby strengthening weakened muscles, reducing inflammation, alleviating pain, and facilitating wound healing. Medical professionals employ EMS as an adjunctive therapy for musculoskeletal injuries or conditions.

The red light therapy device offers 6 distinct EMS Modes and 20 intensity levels, allowing users to customize their settings based on personal preferences.

Six Therapy Modes

We recommend 02 Mixed Pulse Mode for most cases, such as peripheral neuropathy, arthritis, muscle strain, and wound healing.

01 Mixed Mode(630+660+810+880nm):

Press the “R” key ONCE of the controller, both red and infrared light will be on.

02 Mixed Pulse Mode(630+660+810+880nm+Pulse):

Press the “R” key ONCE of the controller, then press the “P” key to start this pulse mode.

03 Infrared Light Mode(810+880nm):

Press the “R” key TWICE of the controller, only infrared light will be on.

04 Infrared Light Pulse Mode(810+880nm+Pulse):

Press the “R” key TWICE of the controller, then press the “P” key to start this pulse mode.

05 Red Light Mode(630+660nm):

Press the “R” key 3 TIMES of the controller, only red light will be on.

06 Red Light Pulse Mode(630+660nm+Pulse):

Press the “R” key 3 TIMES of the controller, then press the “P” key to start this pulse mode.

Adjustable Photon Power Intensity

The infrared red light wrap offers three temperature options: L*40°C, M*42°C, H*47°C (+/- 2°C). The default setting is the low level of 40°C.

We recommend starting with the default level and gradually increasing it to a suitable temperature based on individual needs.

Pulse Light for Next Level Therapy

When pulse mode is selected, the continuous wave will be transformed into pulsed light, pulsating at a frequency of 10 times per second. This facilitates more effective stimulation of our body tissues’ activity.

Excellent Materials and Exquisite Workmanship





Power Supply in Two Ways

Multiple Applications

The pad can be wrapped around various body parts such as the foot, arm, waist, thigh, etc.

When you lay it flat, you can apply it anywhere on the body.

Usage Suggestions and Maintenance

1. 30 minutes a session, 1-2 times a day for the same area at an interval of 6 hours, and last for a minimum of 4 weeks.

2. Drink some water before and during use.

3. Uncover your skin and pad for better light therapy results. If you need to wear some clothes, then a thin and silk one is better than a cotton or thicker one.

4. After use, unplug and store the belt in a cool and dry area.

5. All LEDs are waterproof designs, and it is safe to use a light damp cloth to gently wipe the surface to clean.

Two same packages come together, each one includes

• 1*Red Light Therapy Device
• 3*Stretchy Band
• 1*Power Cord with Controller
• 1*Adaptor
• 1*Power Cord
• 4*Electrode Patches
• 1*EMS Therapy Line
• 1*Step-up USB Cable
• 1*Storage Bag
• 1*User Manual
• 1*Gift Box
