Product Specifications
Shell Material | Aluminum Alloy |
Voltage | 100-240V |
Power Consumption | 402W |
Product Size | 880 x 276 x 71mm (34.6 x 10.87 x 2.79in) |
Net Weight | 11.8kg |
LEDs | 300 * 3W |
Lens Beam Angle | 30 Degree |
Wavelengths | 5 of 630nm + 660nm + 810nm + 830nm + 850nm |
Irradiance | 156mW/cm² at 6 inches; 140mW/cm² at 12 inches; 132mW/cm² at 18 inches; 103mW/cm² at 24 inches. |
EMF | 0 μT |
Timer (6 Levels) | 5 / 10 / 15 / 20 / 25 / 30 Minutes |
Dimmer (5 Levels) | 20% / 40% / 60% / 80% / 100% |
Pulse Frequency (6 Levels) | 10 / 40 / 73 / 146 / 293 / 587Hz |
Cooling Fan Quantity | 2 |
Life Span | > 50,000 Hours |
Warranty | 3 Years |
Frame Design (Patent)
1. A well-knit and ultrathin aluminum alloy frame in an integrative molding method with a smooth cambered corner design looks more exquisite. Excellent thermal dissipation and outstanding oxidation resistance.
2. The whole shell is more smooth and even, preventing any hurt may be caused by sharp corners or bumpy screws.
3. The surface is frosted with strong scratch resistance.
4. A bespoke heat-resistant and dust- and splash-proof acrylic panel was applied to protect the lamps.
5.Anti-skid and anti-collision rubber feet at a height of 15mm for the bottom and 31mm for the rear provide better protection.
6. Built-in handle design in the back for easy carry.
Cooling System Design (Patent)
Patented hydrodynamic heat dissipation technology ensures that the device stays at a moderate temperature during operation. Together with two mute built-in cooling fans and the design of cellular heat emission holes, air circulation and heat dissipation are effectively promoted.
The infrared red light therapy lamp can be used continuously for a longer period of time. Don’t worry about overheating, which will shorten its life or affect its performance.

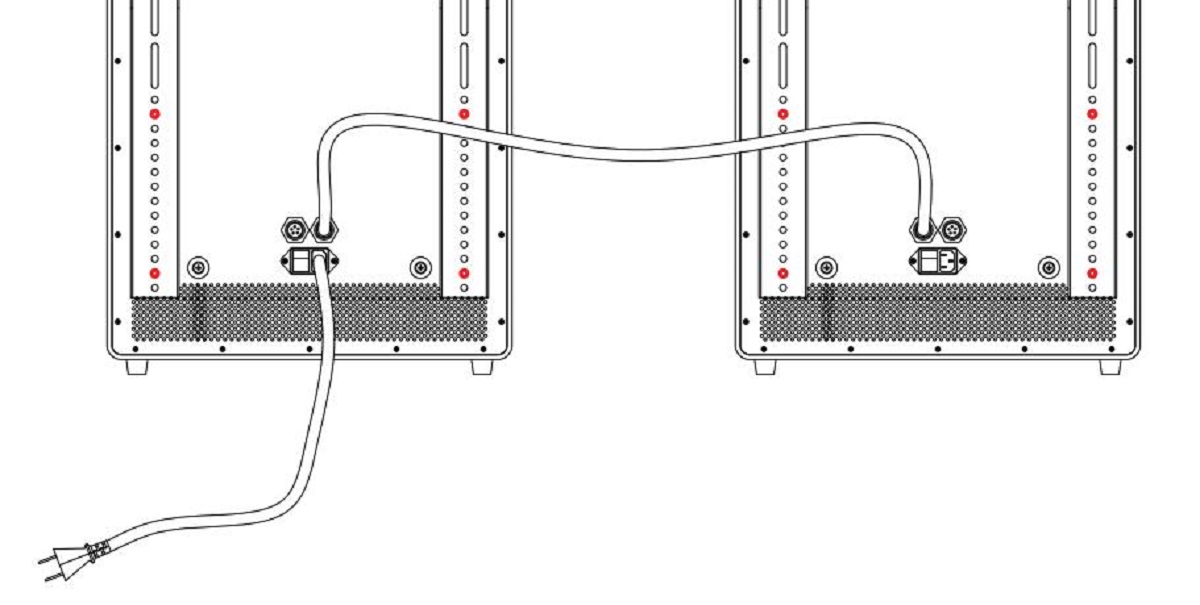

Cascade Design (Patent)
Only one power cable is required to supply power to all devices. A remote controls all online devices simultaneously. No sophisticated design of signal only in or out, and no extra button need to press.
Easy Cascading:
1. Keep ONLY one device plugged in.
2. Connect more devices with the signal cable like the photo. Two signal outlets of each panel are same for freely choice.
3. Use any one of the remotes to control.
4. A specific set of parameters for a panel can be set by its control board.
Note: Long-press the “R/NIR” buttons of other remote controllers for 5s to close their remote function, again to open the function. Indeed, the operation is not required, if other remote controllers are well retained and will not impact your control.
Irradiance and Coverage
Further Major Materials
Lamp beads: High-quality 38mil and 42mil LED Chips, gurantee useful photon radiation.
Power Supply: Waterproof IP67. Aluminum alloy metal housing, easy to dissipate heat and ensure stability.
Electrical Wires: All are American Wire Gauge (AWG) for more stable performance.
Easy-to-use by Control Panel or Remote Control
After connecting the power and turning on the power switch on the lower back. You can click the buttons on the control panel or remote controller to set up the light, time, brightness and pulse frequency for light therapy.
Light Mode Selection
Click the light button, 3 light modes can be switched: Red + NIR (1st) -> Red (2nd) -> NIR (3rd).
4th press for off.
5th press for another light mode selection cycle, Red + NIR (5th) -> Red (6th) -> NIR (7th).
- When red light + NIR mode is selected, “RED” and “NIR” indicators lighten in green simultaneously;
- When red light mode is selected, the “RED” indicator lightens in green;
- When near infrared (NIR) light mode is selected, the “NIR” indicator lightens in green.
Timer Function
Click the timer button, 5 -> 10 -> 15 -> 20 -> 25 -> 30 minutes can be selected, it will begin to count down in 0.3s.
Press it for over 1s to halt the count down process, and press again for a continuation for the unfinished time.
Dimmer Function
Click the dimmer button, 5 levels of brightness can be switched to choose: 20% -> 40% -> 60% -> 80% ->100%.
Pulse Function
Click the pulse button, 6 levels of pulse frequencies can be switched respectively: 10 -> 40 -> 73 -> 146 -> 293 -> 587Hz.
Merged Red and Infrared Light Therapy Effects
- Improve blood circulation
- Promote metabolism and detoxify the body
- Facilitate skin, hair and body health
- Lighten wrinkles and fine lines
- Improve saggy skin and complexion
- Reduce inflammation and repair tissues
- Allievate muscle strain, ligaments and joints pain
- Boost sleep quality and immunity
- Weight loss
Visible Red light is absorbed by the skin tissue, stimulates collagen and elastin production, lightens freckles and red bloodshot, removes fine lines and shrinks pores, majorly applied for boold circulation and skin rejunvenation.
Invisible Infrared light can penetrate deeply into the subcutaneous tissues, then generate radiant heat from inside, the blood flow speeds up and tissue metabolism promotes, enhances the cells activation, repair damaged tissues, facilitates excess fat consumption, relieves pain, etc.
Five-Waveband ( 3 more wavelengths for next level therapy)
1) 630nm red light was generated by 30 LEDs.
2) 660nm red light was generated by 120 LEDs.
3) 810nm NIR was generated by 15 LEDs.
4) 830nm NIR was generated by 30 LEDs.
5) 850nm NIR was generated by 105 LEDs.
Conveniently Use with Complimentary Door Hanging Kit
You can follow the video to mount your lamp on the door or wall.
Manual Mobile Stand for Both Vertical and Horizontal Hanging
You can order the stand separately via the product link: Red Light Therapy Stand
Electric Mobile Stand with Adjustable Heights and Angles
You can order the stand separately via the product link Electric Mobile Stand for Red Light Panel
Packing List
1 x Light Therapy Device
1 x Remote Controller
1 x Power Cord (Follow your country standard)
1 x Door Hanging Kit
1 x Goggles
1 x Acrylic Base (Optional)
Note: If your order quantity for the lamp is two or more, we will provide you with enough signal cable for free.
Use Suggestion
Session:10-20 minutes for the same area in a session. It is better to start with a shorter session if you never use light therapy.
Frequency: 1-2 times a day for the same area treatment. Keep minimum 6 hours interval for the 2nd treatment for the same area.
Distance: Expose your skin and keep a distance at 6-24 inches from the device for best results.
Protect your eyes: Please wear goggles when enjoying the light therapy.
Tips: Drink some water before and during use.
NOT USE UNDER THESE CONDITIONS
Children under the age of 13, pregnancy and epilepsy, photo-allergy, and photosensitizing medications like lithium, melatonin, phenothiazine antipsychotics, and certain antibiotics.
People with a history of skin cancer, insensitive to heat, and systemic lupus erythematosus should also avoid this kind of treatment.
Besides, if you are currently taking steroids or cortisone injections, you should not receive light therapy.
Precautions
1. One treatment session for the same area should not exceed 30 minutes.
2. Turn off all power after finishing treatment, pull plugs off when not in use.
3. Do not use the device in the circumstances of hot, humid, dusty or have lampblack in the environment.
4. Keep your device away from sources of liquid, such as drinks, washbasins, bathtubs, shower stalls, and so on.
5. Keep your device in a cool, dry, well-ventilated location without corrosive gas.
6. Prevent impact or violent vibration, move it gently.
7. Avoiding alcohol or corrosive solvent to clean all parts of the device.
Maintenance
Turn off the power of your device first, and then unplug the power cord. Then use a light damp, soft, lint-free cloth to clean exterior. Do not spray liquid directly.
3-Year Warranty
All panels of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of three years from the date of shipment from the factory. IRL will be responsible for the faults of the products caused by the normal using during the warranty period, repair or replace the corresponding component found to be defective at no charge to the purchaser.
IRL shall not be liable for any faults or damage caused by misuse, accidental or intentional damage, force majeure, or the product has been modified.
