Red Light Therapy Pad

Product Specifications

Main Materials	Fabric, F-PCB, LEDs
Rated Voltage / Power	100-240V, 64W
Actual Power	23W
Product Size	400 x 200mm (15.7 x 7.8in)
Net Weight	1.06kg
LED Quantity	160pcs dual chip * 0.4W
Wavelengths	RED 660nm : NIR 850nm = 1 : 1
Light Energy Density	0 inch > 100mW/cm²
EMF	0 μT
Photon Mode	Red / NIR / Red + NIR
Timer	Default 20 minutes (5-30 minutes for option)
Dimmer (5 Levels)	1 – 5 (20% / 40% / 60% / 80% / 100%)
Pulse Frequency (7 Levels)	4 / 10 / 40 / 73 / 146 / 293 / 587Hz
Life Span	> 50,000 Hours
Warranty	1 Year

Optimal Combination of Red Lights and Near Infrared Rays (NIR)

160pcs light-emitting diodes (LEDs), are all combined red light with infrared rays function. Each one diode has 2 chips, 160pcs 660nm visible red light chips and 160pcs 850nm invisible infrared light chips. It’s good for penetrating the body deeper, absorbing much more photon energy and jump-start body reaction fast.

The red lights can be soaked up by a part of your cells called mitochondria, sometimes called the “power generators” of your cells, then makes more energy, stimulates collagen and elastin production, spurs healing in skin and muscle tissues.

Infrared rays can penetrate more deeply to reach muscle tissue and nerves, then the cells absorb the nature heat energy and become more active, then increase blood circulation, reduce inflammation and alleviate the pains.

Zero EMF and Powerful Energy

Design Features

1. Exquisite workmanship, high quality material. No strange smells.

2. Quality drawer style box for easy storage and taking out.

3. An easy-to-control board with an intuitive screen that you can easily control and check the value.

4. A pocket for power bank storage was designed on the pad for portable use.

5. It can be used both by DC (5V/9V/12V, 12V 2A for full power supply) and AC (100V-240V) power. Wherever you are, outdoors or indoors, near the power outlet or not, you can always enjoy your light therapy freely.

6. It comes with an extra remote, which can control the pad at a distance of more than 15 meters. You can easily help the elderly and your pets or horse control the therepy process.

7. Customize your own therapy process, 5-30 minutes timer, 5 gears dimmer function, 7 pulse frequencies and 3 light modes for your option.

Easy Operation

1. Power Switch Button：For turn on and turn off. Turn on the pad, it automatically goes into “RED+NIR” mode.

2. “RED” Button: Press it for only “RED” mode. You will only receive the red lights, bright and no heat.

3. “NIR” Button: Press it for only “NIR” mode. You will only receive the NIR lights, and feel the heat, they are invisible to our naked eyes.

4. “Time” Button: Default 20-minute, pressing it to adjust the time, 25 -> 30 -> 0 -> 5 -> 10 -> 15 ->20 minutes, then goes into another cycle.

5. “Hz” : 7 pulse frequencies for your option, 4 / 10 / 40 / 73 / 146 / 293 / 587Hz.

6. “Dimmer” Button (in the middle): For brightness and light energy adjustment, 1=20%, 2=40%, 3=60%, 4=80%, 5=100% (full power), total 5 levels can be chosen.

Pulse Frequency – 10 Hz

Numerous studies demonstrated 10Hz pulsed light has the beneficial effects on learning and memory impairments in certain diseases, such as sleep deprivation, TBI (traumatic brain injury), and mild to moderately severe dementia.

Pulse Frequency – 40 Hz

Gamma (γ) waves 40 Hz, researchers have indicated the use of gamma brain waves to treat numerous cognitive disorders such as Alzheimer’s disease, epilepsy, mild traumatic brain injury, stroke, attention deficit hyperactivity disorder (ADHD), obsessive-compulsive disorder (OCD) and schizophrenia, and mood disorders like depression.

Further Hz functions refer to the blog: https://infraredredlight.com/pulsed-light-functions-at-different-frequencies

Versatile Applications

The red light therapy belt can be used to cover your arms, legs, hip, abdomen, lumbar, shoulder or your dogs and cats. It helps to give the target tissues more energy and regenerate themselves. If you have any disorder of your joints and muscles, like frozen shoulder, arthritis, muscle strain, potbelly, etc., and want a light therapy experience with a little money, then the belt will undoubtedly be the best choice, order for yourself today.

Usage Suggestions and Maintenance

1. 20 minutes a session, 1-2 times a day for the same area at an interval of 6 hours, and last for a minimum of 8 weeks.

2. Drink some water before and during use.

3. Uncover your skin and pad for better light therapy results. If you need to wear some clothes, then a thin and silk one is better than a cotton or thicker one.

4. After use, unplug and store the belt in a cool and dry area.

5. All LEDs are waterproof designs, and it is safe to use a light damp cloth to gently wipe the surface to clean.

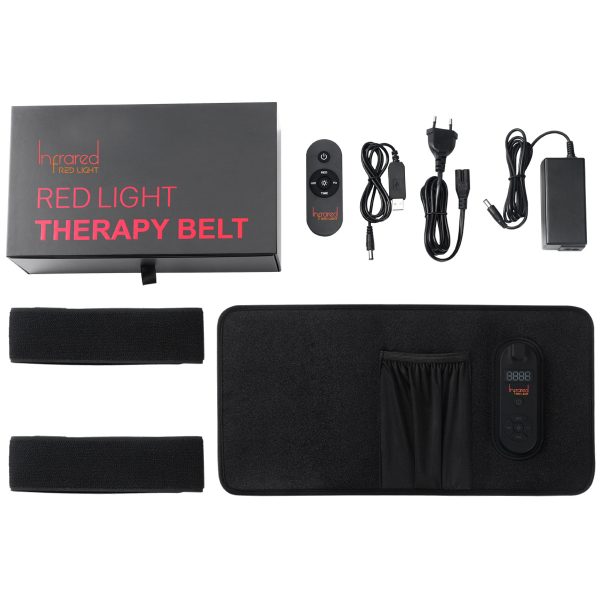

Package Includes

1x Therapy Pad
2x High Elastic Rubber Band
1x Step-up USB Cable
1x Remote Controller
1x Power Cord (Follow your country standard)
1x Power Adaptor

Power bank can be purchased via the link: Power Bank DC 12V

Notes: ​If your power bank has a 5V/9V output, then use the USB cable we provide, which helps to boost the voltage. It’s best to use the original USB cable at 12V for full power.

Warning

1. NOT USE UNDER THESE CONDITIONS: Children under the age of 13, pregnancy and epilepsy, photo-allergy, and photosensitizing medications like lithium, melatonin, phenothiazine antipsychotics, and certain antibiotics. People with a history of skin cancer and systemic lupus erythematosus should also avoid this kind of treatment. Besides, if you are currently taking steroids or cortisone injections, you should not receive light therapy.

2. One treatment session for the same area should not exceed 30 minutes.

3. The light therapy product is not waterproof design, keep away from water and damp area.

4. Do not fold and squeeze the pad, please loose roll it to prevent the built-in flexible PCB board from fracturing, unfold and flat storage will be the best way.

1-Year Warranty

All pads of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of one year from the date of shipment from the factory. IRL will be responsible for the faults of the products caused by the normal using during the warranty period, repair or replace at no charge to the purchaser.

IRL shall not be liable for any faults or damage caused by misuse, accidental or intentional damage, force majeure, or the product has been modified.
