Full Body Infrared Light Therapy Pad Detachable Cover

---

Product Specifications

Main Materials	Mat: SBR, F-PCB, LEDs; Protective case: TPU + nylon cloth
Rated Voltage	AC110-240V, 50-60Hz
Output Voltage	DC36V
Power	130W
Current	7.8A
Product Size	1700 x 600mm (67 x 23.6in)
LED Quantity	1440pcs Tri-chip, 4320pcs chips
Wavelengths	660nm : 850nm = 1 : 2
Light Energy Density	120mW/cm² / 135mW/cm² / 150mW/cm²
EMF	0 μT
Timer	0-30 minutes（Default: 15 minutes）
Temperature	118℉ / 125℉ / 132℉
Pulse Frequency	1.33 / 10 / 40Hz
Life Span	> 50,000 Hours
Customizable	Logo, wavelengths, etc.

Three Chips in One LED

Total 4320pcs chips for specific wavelengths.

Each LED includes 3 chips, 1440pcs 660nm visible red light chips and 2880pcs 850nm invisible infrared light chips. It’s good for penetrating the body deeper, absorbing much more photon energy and jump-start body reaction fast.

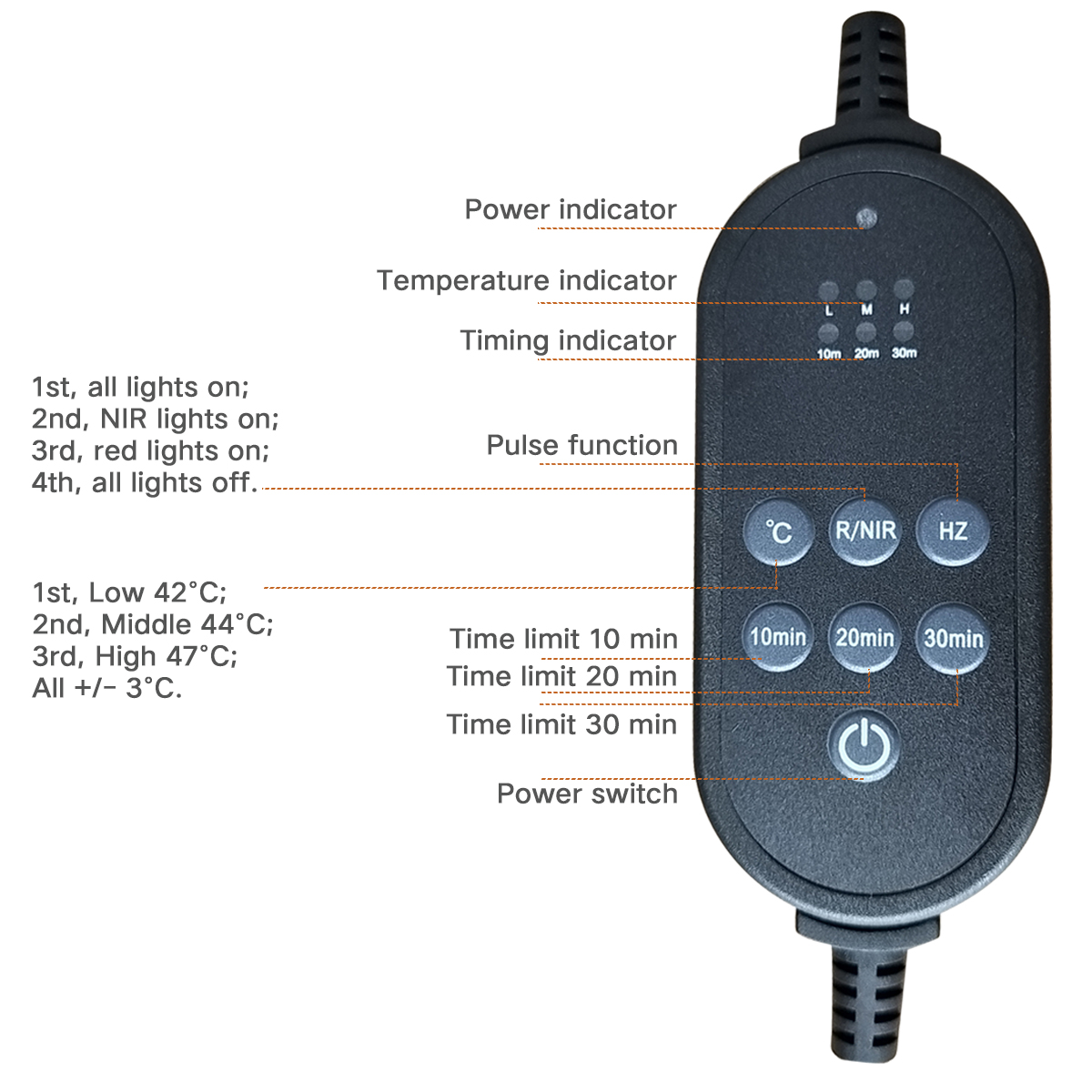

Intelligent Remote Control

Each button for one function for intuitive control.

Colorful display helps you recognize your own therapy program clearly.

Three Levels Pulse Setting

1.33hz – The same with heart rhythm

10hz – Alpha (α) waves, are the dominant brainwave in adults who are awake and relaxed, restful, or reflective with their eyes closed. They are associated with calmness and alertness, and act as a bridge from the external to the internal world,

40hz – Gamma (γ) waves, they can improve your cognition, information processing, memory, attention span, awareness and mindfulness. Due to these effects, researchers have indicated the use of gamma brain waves to treat numerous cognitive disorders such as Alzheimer’s disease, epilepsy, mild traumatic brain injury, stroke, attention deficit hyperactivity disorder (ADHD), obsessive-compulsive disorder (OCD) and schizophrenia, and mood disorders like depression.

Three Temperature and Brightness Levels

Recommond start from lower temperature of level 1, then adjust it to a higher level following your feeling.

Detachable Protective Case

We use particular transparent TPU case to protect the full body RED LIGHT THEREAPY PAD.

You can cover it or remove it at your will.

With the detachable protective case, it will be easy to keep it clean. If you are an owener of a wellness center, aach client can enjoy a sanitary mat and comfortable therapy service.

How to Use with Protective Case

Red Lights and Infrared Rays (IR) Effects

The red lights with 660nm wavelength stimulates mitochondria, sometimes called the “power generators” of your cells. Chemical energy produced by the mitochondria is stored in a small molecule called adenosine triphosphate (ATP). With enough ATP, the cells can function more efficiently, rejuvenate themselves, and repair damage.

Infrared rays (IR) with 850nm has strong permeability and uniform energy. It can effectively act on the dermal tissue, generate radiant heat from inside, mimic natural sunlight, and increase your core temperature faster. After the body temperature rises, the tiny blood vessels open, the blood flow speeds up, and the circulation improves. Meanwhile, metabolism promotes. Thereby increasing skin elasticity, repairing sensitive skin, achieving the purpose of rejuvenating skin, shrinking large pores, relieving fatigue, alleviating muscle pain, improving insomnia, etc.

Exquisite Craftmanship

Usage Suggestions and Maintenance

1. 20 minutes a session, 1-2 times a day for the same area at an interval of 6 hours, and last for a minimum of 8 weeks. Start from a lower level of teperature. Not exceed 30 minutes in one session.

2. Drink some water before and during use.

3.Expose your skin for better light therapy results. If you need to wear some clothes, then a thin and silk one is better than a cotton or thicker one.

4. After use, unplug and store the belt in a cool and dry area.

Package Includes

1 x Therapy pad
1 x Protective case
1 x Adapter
1 x Power cord (The plug will comply with your country’s standard)
1 x Protective goggles
1 x Remote control
2 x AAA battery
1 x Storage bag
1 x User manual

Warning

1. NOT USE UNDER THESE CONDITIONS: Children under the age of 13, pregnancy and epilepsy, photo-allergy, and medications that cause light sensitivity (such as Tetracycline). Besides, if you are currently taking steroids or cortisone injections, you should not receive light therapy.

2. The light therapy product is not waterproof design, keep away from water and damp area.

3. Do not sharp bend the pad, please loose roll it to prevent the built-in flexible PCB board from fracturing.

4. Please put it on a hard and flat area when use.

1-Year Warranty

All pads of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of one year from the date of shipment from the factory. IRL will be responsible for the faults of the products caused by the normal using during the warranty period, repair or replace at no charge to the purchaser.

IRL shall not be liable for any faults or damage caused by misuse, accidental or intentional damage, force majeure, or the product has been modified.
